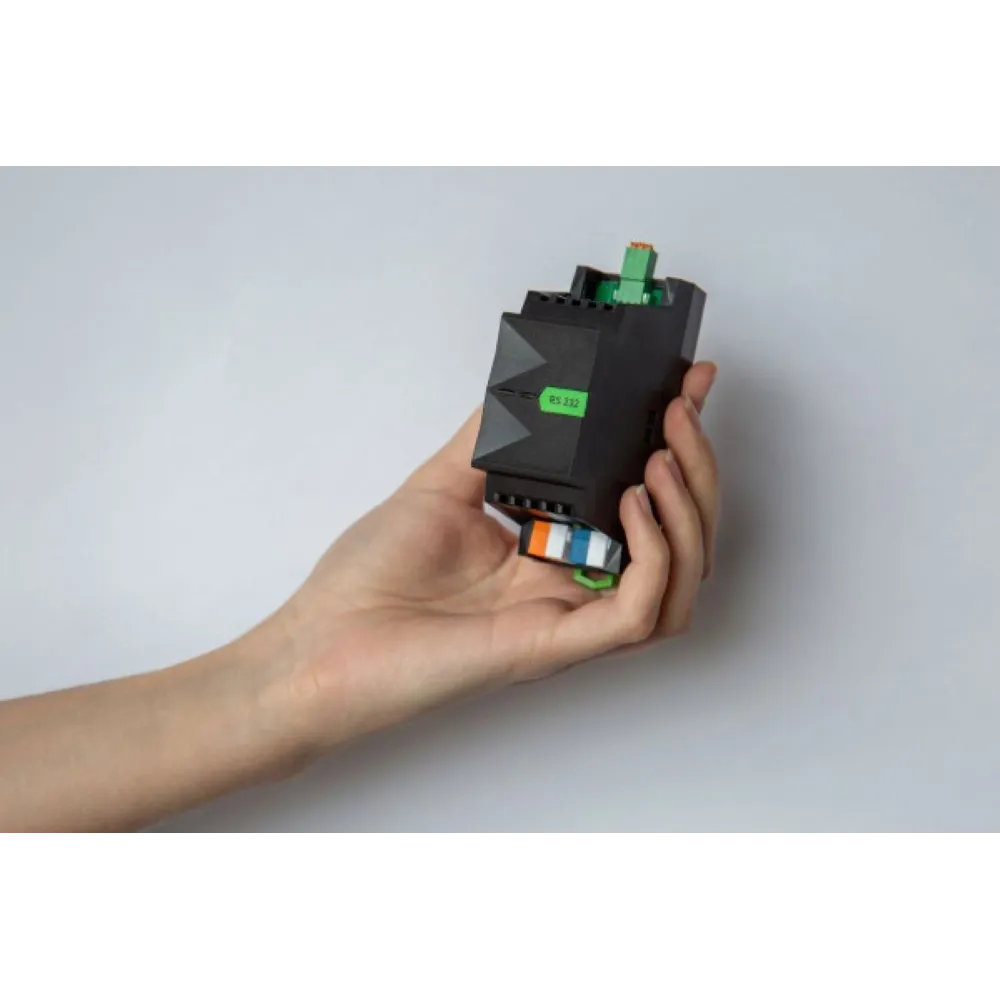

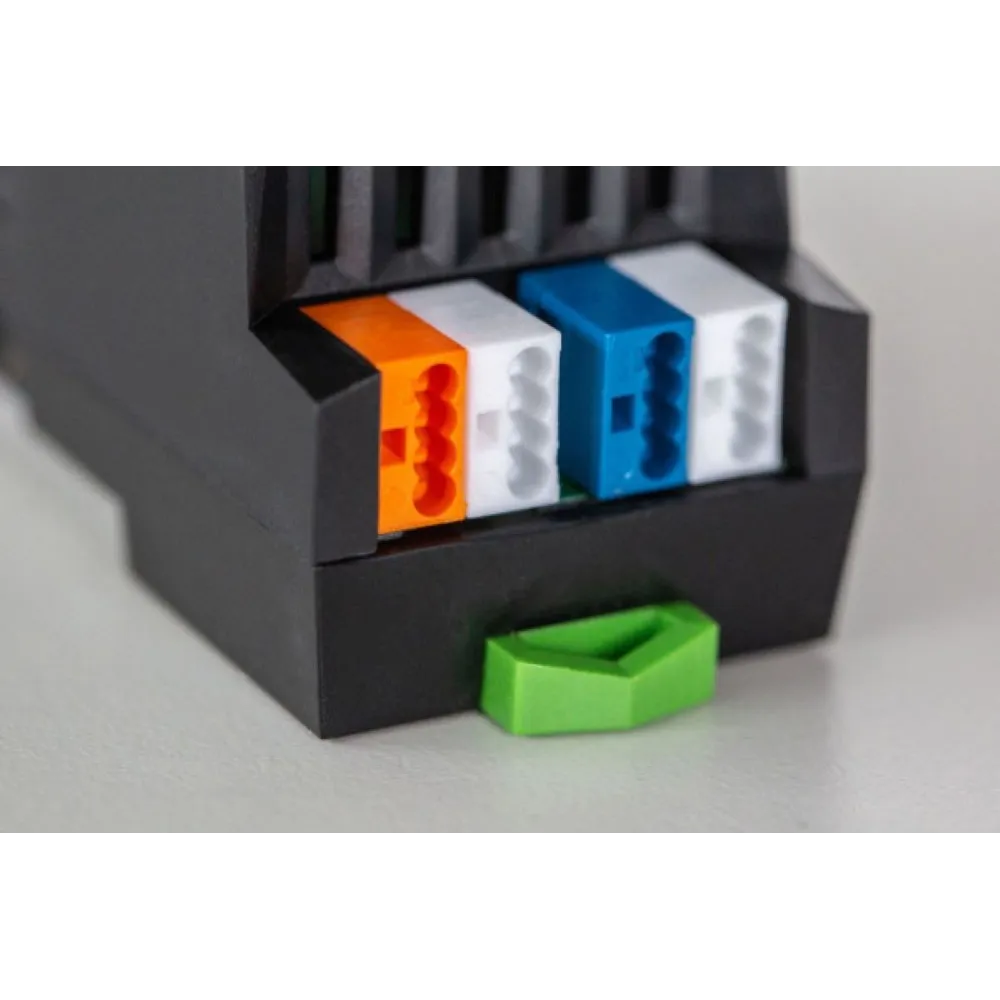

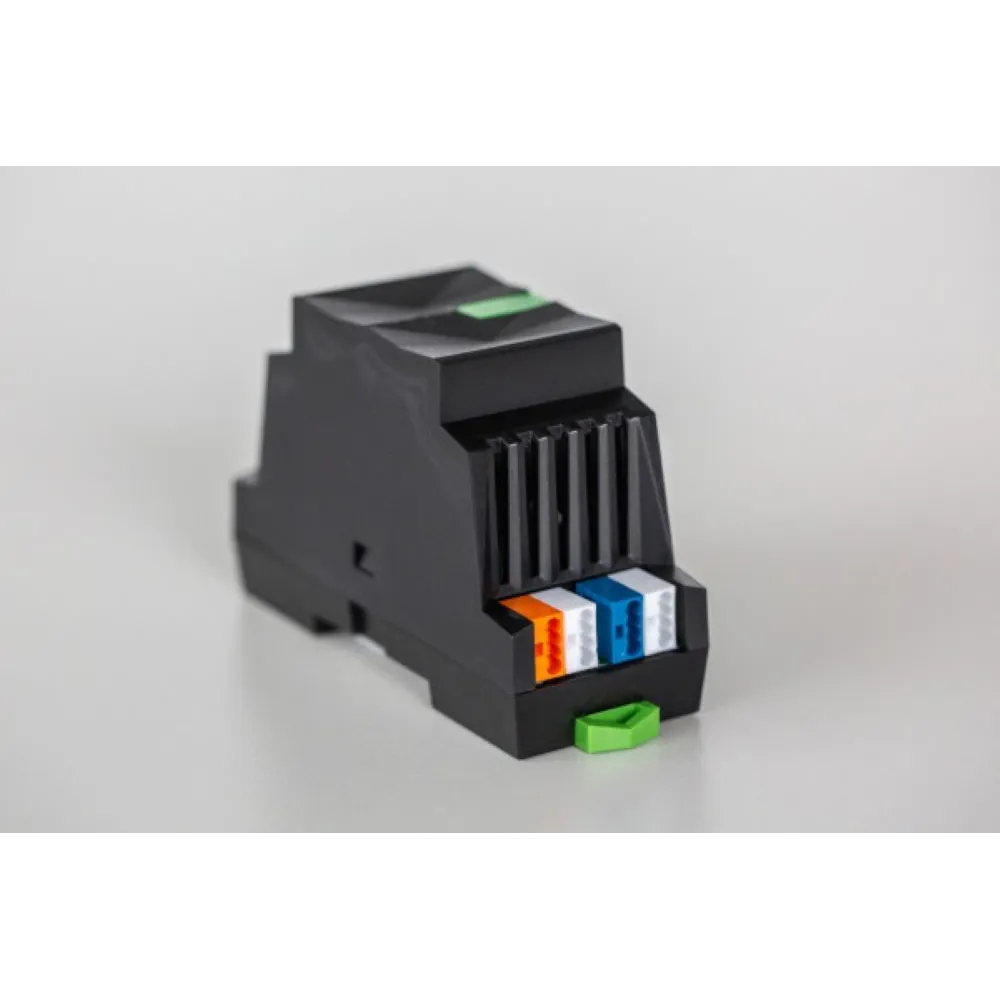

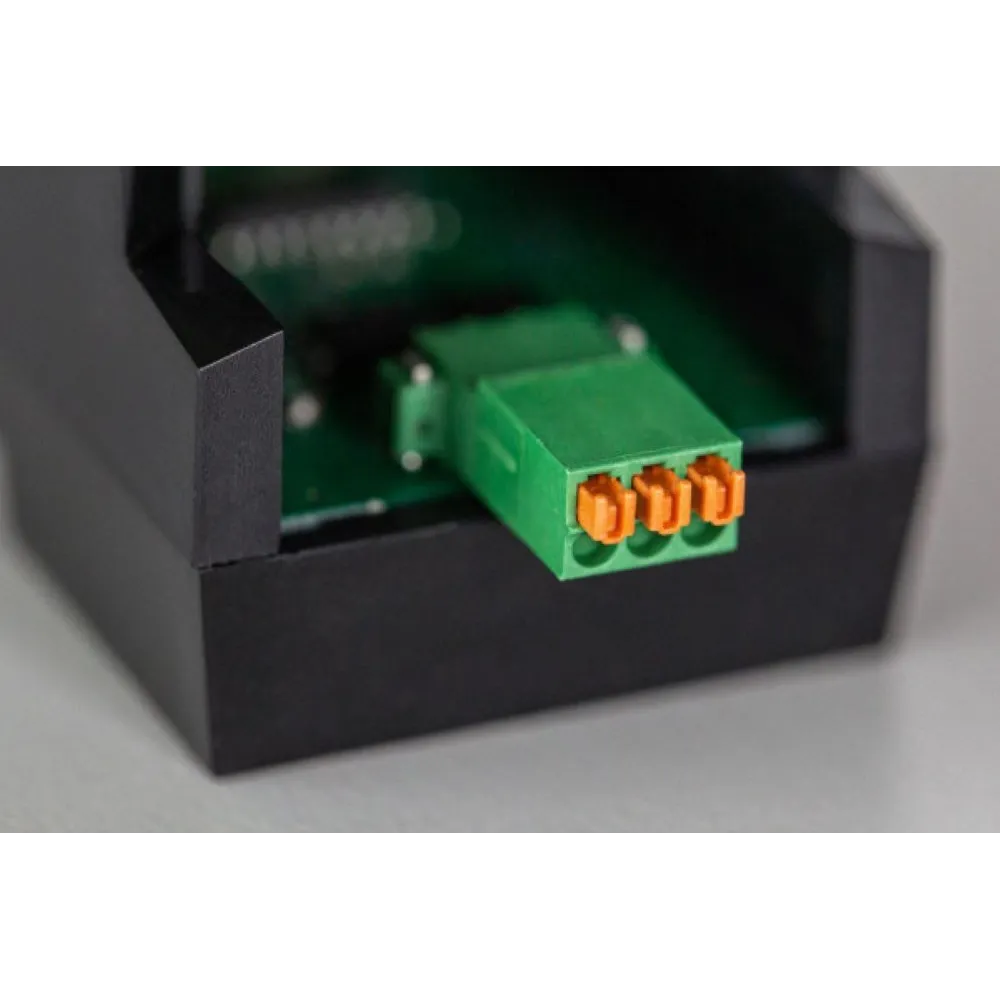

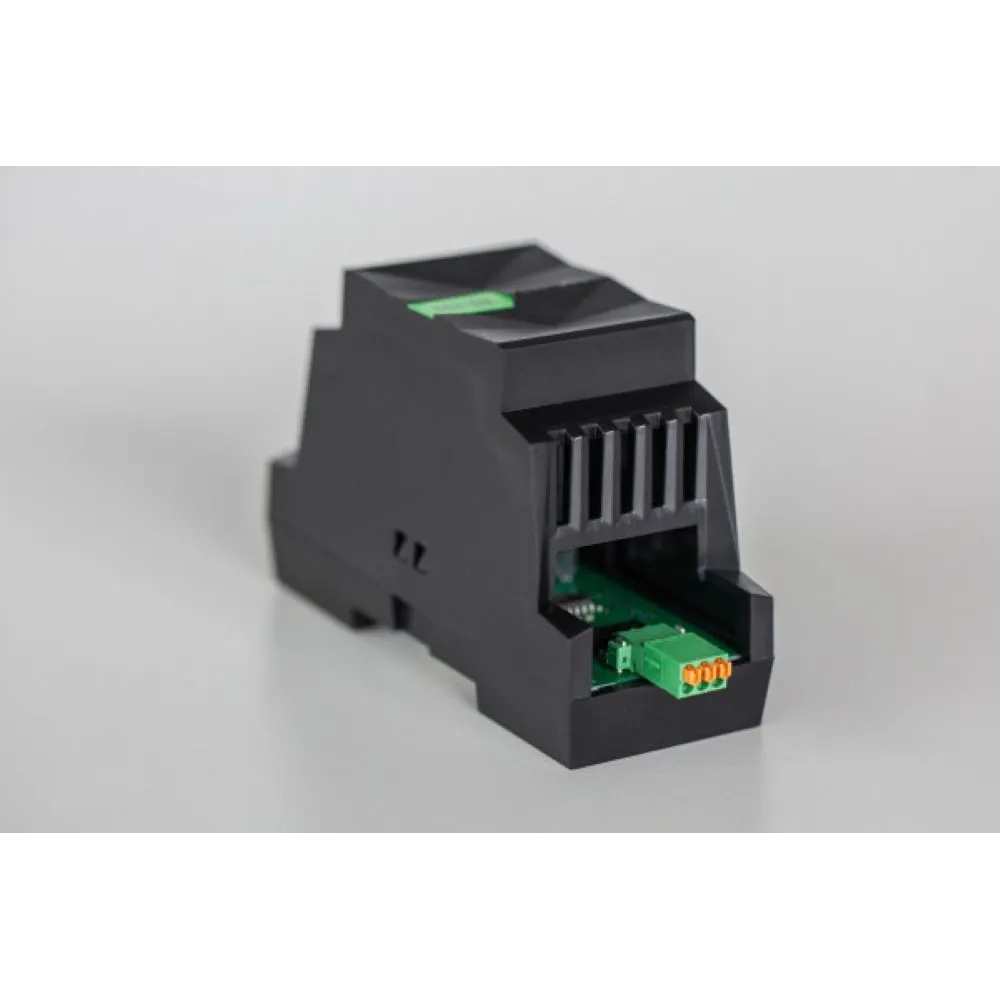

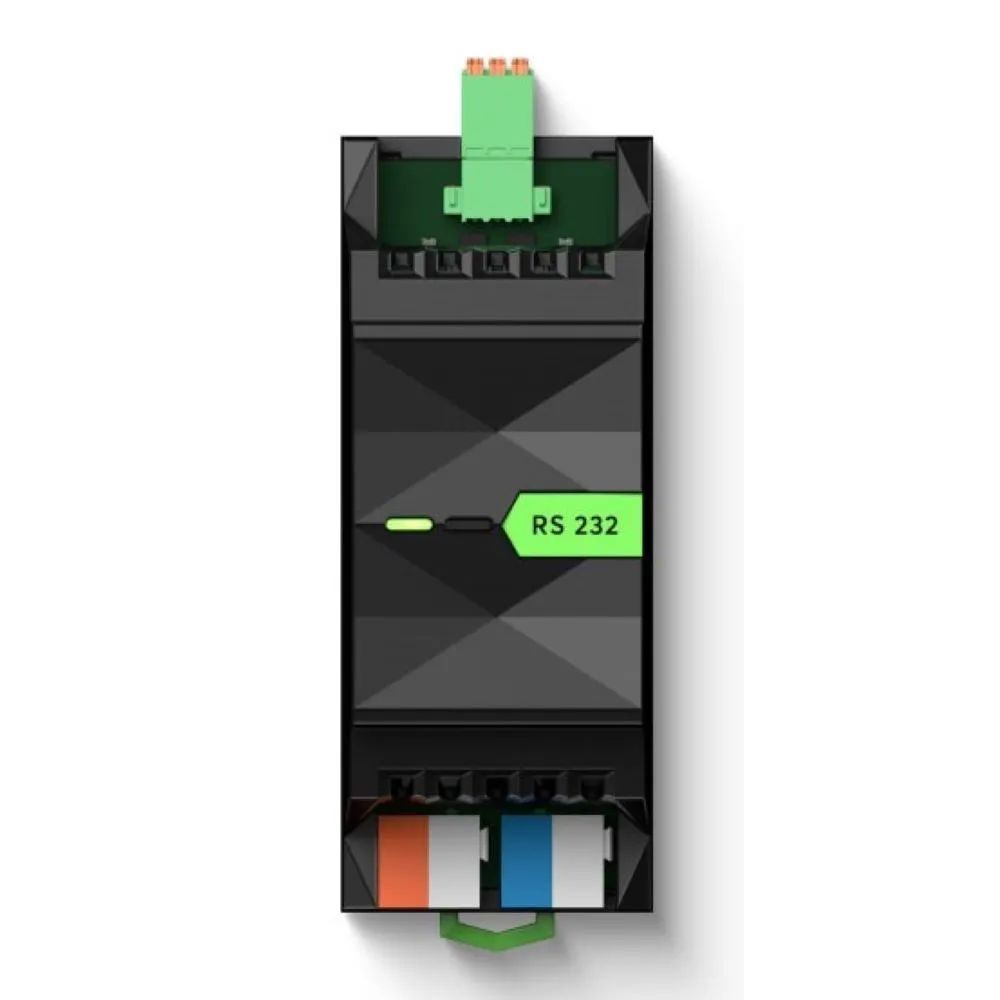

RS232 Extension

Pro integraci zařízení RS232. Nastavitelná přenosová rychlost a parita.
4 635,00 Kč
S DPH
Počet
Přidat na seznam přání

Power Supply: 9 ... 28VDC Product dimensions: 35.4x88x57mm / 1.4x3.46x2.24" (LxWxH) Power consumption typ. 0.19W Interfaces RS232: for integration of RS232 devices max. 15m wire length adjustable baud rate & parity Only 8 data bits are supported. Loxone Link: connection with Miniserver Power loss at max. load 0.60W Temperature -40 ... 70°C / -40 ... 158°F Humidity max. 95% r.H. (non condensing) Ingress protection IP20 Wire cross-section RS232 interface: 0.14 ... 0.5mm² / AWG26 ... 20 Power Supply & Loxone Link: 0.25 ... 0.8mm² / AWG23 ... 18 Stripping length RS232 interface: 7mm / 0.28" Power Supply & Loxone Link: 5mm / 0.2" Temperature resistance RS232 interface: -40 ... 70 °C / -40 ... 158°F Power Supply & Loxone Link: -40 ... 105°C / -40 ... 221°F Mounting type DIN rail according to EN50022, 35mm Colours Black: RAL9005 Finish Matte Total weight 85g Product dimensions drawing Pack size 121x38x62mm / 4.76x1.50x2.44" (LxWxH)
100013
